• TWO SWITCH TYPES OPTIONAL:You can choose from rocker s witch and reset switch freely, perfectly applicable for different home switches.
• RELAY STATUS SETTABLE: According to your living habits and needs, set the device on/off after the power on or maintain the original switch state, so that your home equipment can operate normally.
• SWITCH STATE SYNCHRONOUS: Supporting the double control of two matched roker switches. Two operation types of flip to change on/off state and state synchronous can be set. After setting state synchronous, the on/off position is fixed and synchrounous with each switch.
• MULTI-CONTROL ASSOCIATION: No worry about rewiring trouble, you can realize double control or even multiple control on one light after setting in App.
• 2 VERSIONS OF WIFI SWITCH MODULE: Choose your needed witch module of 1 gang and 2 gang . 1-gang switch module can be connected with one switch while 2-gang switch module can be connected with 2-gang switch.
• Note: For switch module of ZigBee version, ZigBee gateway is required. Please purchase in addition.

SPECIFICATIONS

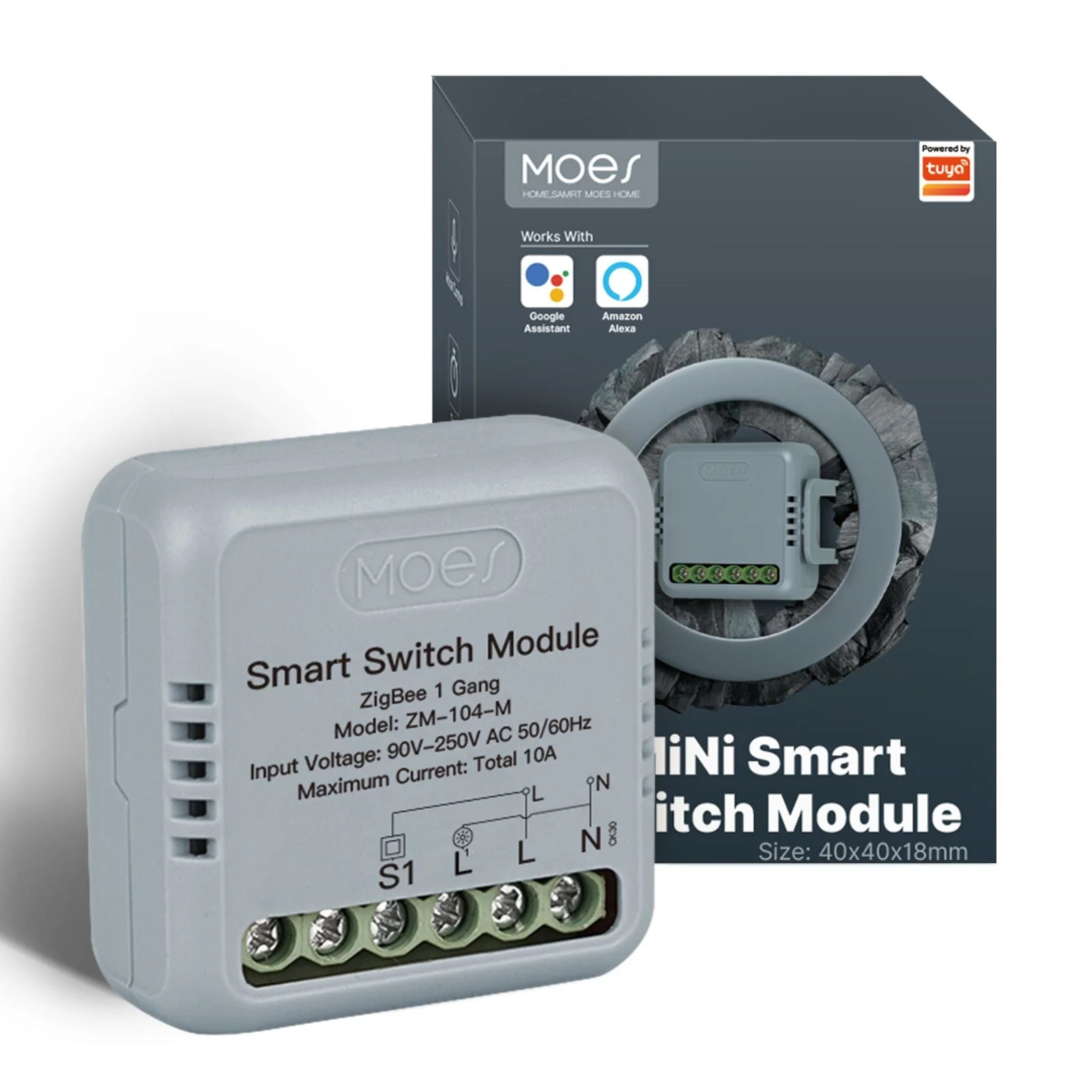

• Model: ZM-104-M
• Product: Smart Switch Module
• Wireless Protocol: ZigBee3.0
• Voltage: 90-250V AC50/60Hz
• Current: 10A/Gang, Toatal 10A
• Operation Temp: -10℃~65℃
• CaseTemp: Tc: +80℃ (Max)
• Operation Range: ≤70m

• Dims (WxDxH): 40x40x18mm
• IP Rating: IP20

PACKING LIST

• Switch Module x1
• Manual x1
